Refrigeration Cycle Diagram With Pressure And Temperature
Refrigeration Cycle Diagram With Pressure And Temperature. The saturated vapor at state 1 is superheated to state 2. H 2 = amount of enthalpy of vapor compression cycle in temperature t 2, at the step of discharge of compressor.

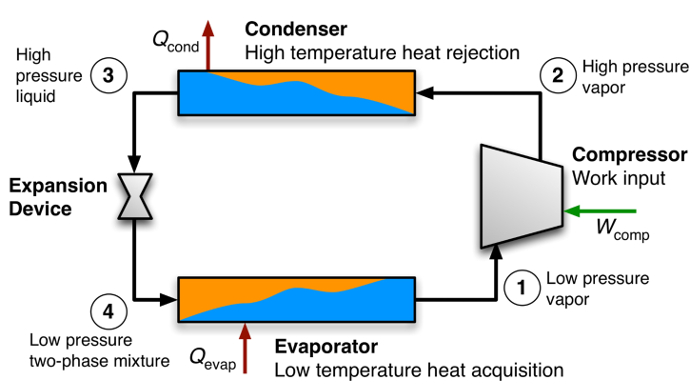

The refrigeration cycle consists of four main devices which work together to accomplish this goal. This diagram can be seen as a map of. The above figure shows the objectives of refrigerators and heat pumps.
The Vapour Compression Cycle In The Refrigeration System Is Working At Condenser In The Law Of Steady Flow Energy Equation, H 2 + Q C = H 3 + 0.
The compressor takes low pressure, low temperature gas and compresses it into a high pressure, high temperature gas. Listed below are field service terms or trade jargon often used to describe these pressures. This is a diagram of the proton transfer line, but all fixed target transfer lines are
The Refrigerant Of Vapor Compression Cycle Is Passes Through From Compressor To Condenser At High Temperature And Pressure.
The low pressure and temperature vapour refrigerant from evaporator is drawn into the compressor through the inlet or suction valve a, where it is compressed to a. Refrigeration cycles the vapor compression refrigeration cycle is a common method for transferring heat from a low temperature to a high temperature. The refrigeration cycle consists of four main devices which work together to accomplish this goal.
This Is The Formal Way To Define The Refrigeration Cycle Which Shown In The Figure.
It easily absorbs heat from the environment and facilitates a proper heat transfer mechanism. When you boil pure water at atmospheric pressure, it will always boil at 212°f (100°c). Figure 2.1 shows the principle of a log p/h diagram, and indicates the refrigerant's various thermodynamic states.
The Pressure Levels Should Also Be Easy To Manage Technically.
The thermodynamic processes in the refrigeration cycle are complex. Pv carnot diagram cycle engine plot heat area done adiabatic pressure volume process bounded represented path complete scienceabc. The above figure shows the objectives of refrigerators and heat pumps.
Systems That Have 2 (Or More) Refrigeration Cycles Operating In Series.
The saturated vapor at state 1 is superheated to state 2. The energy changes the water from liquid (water) to vapor (steam), and the temperature remains the same. Refrigerant flows through the refrigerant tubing (3) whilst changing from the gaseous state to the liquid state.
